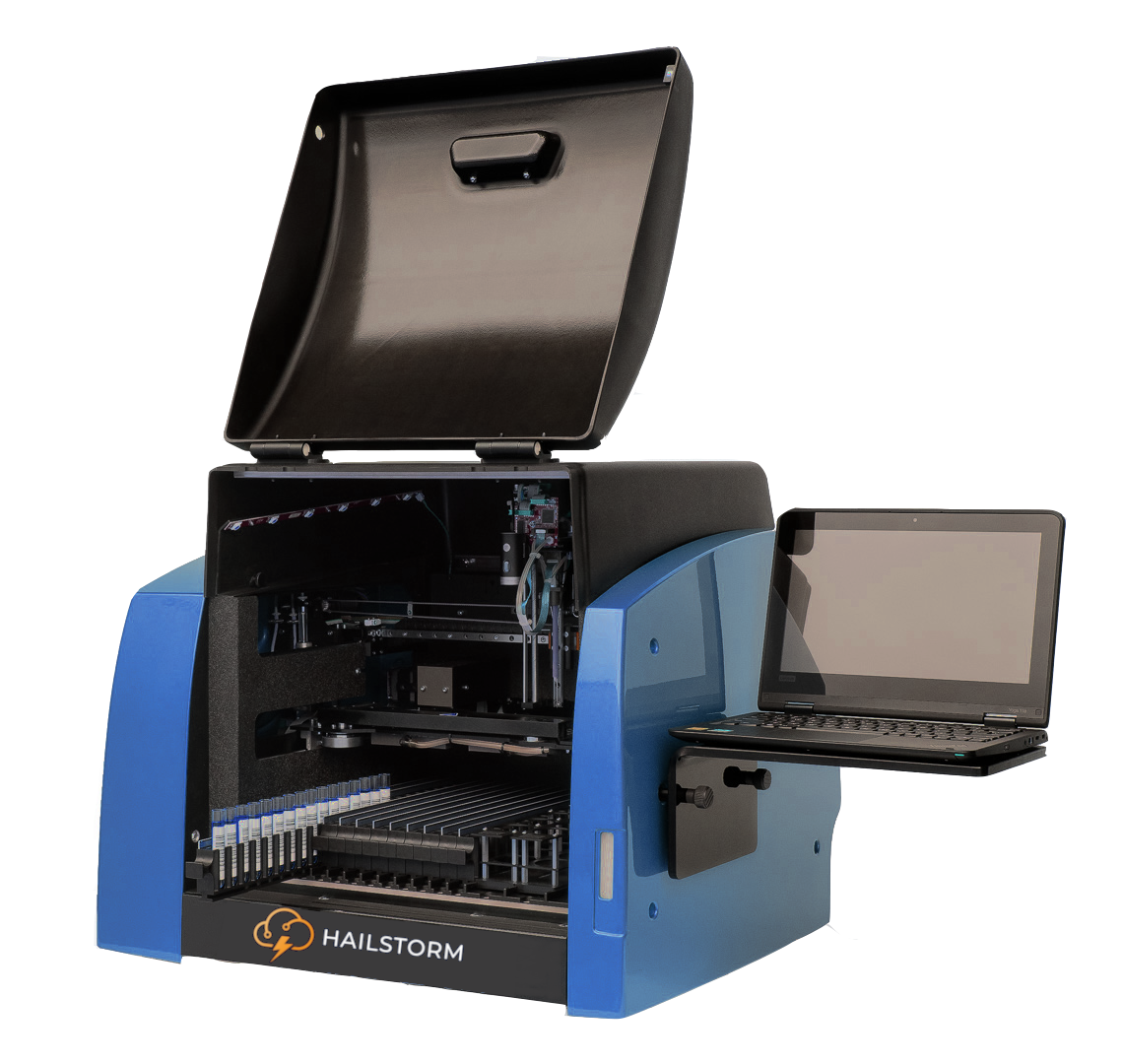

Hailstorm® ELISA-Microarray Analyzer

Hailstorm® ELISA-Microarray Analyzer

Hailstorm® is an innovative 2-plate, fully automated platform that is compact and cost efficient. The user friendly and flexible software is capable of running a broad range of protocols. Hailstorm® performs both ELISA and Chemiluminescent (CLIA) procedures, as well as ELISA-MicroArrays from GSD.

Increase efficiency and minimize costs with Hailstorm®, an innovative 2-plate, fully automated platform that is compact and cost efficient. The instrument provides walk-away processing of any ELISA, Chemiluminescence (CLIA) assays and ELISA-Microarrays marketed by GSD.

Customisation and validation available for third-party kit assays. Hailstorm® offers automation features previously reserved for instruments many times the price and size! Streamline your workflow with easy loading, and fully automated processing, reading and reporting of results.

*Not available in the US.*

;
  • Powerful automation in a small and light instrument
  • Ultimate flexibility with to run virtually any ELISA or CLIA assay with up to eight different protocols in a single batch
  • Intuitive, customisable Instrument Manager software for running task lists and reviewing and evaluating results
  • Convection incubator that quickly and uniformly heats each individual reaction well, allowing the Hailstorm® to deliver consistent results
  • No-spill design: keep fluids in the well while vigorously shaking with the fully-integrated and automated orbital shaker
  • Built-in, fully automated ELISA and CLIA reader
  • Slide-in racks utilizing a bar code reader that allow the user to simply place each individual sample in the rack
  • Complete service portfolio - pick the one the best fits your needs!

Routine maintenance and support are provided with pre-aligned, transparent plans and premium packages to ensure the best service of the equipment.

Sample Capacity

12 racks of 16 samples. Up to 192 samples total.
Reagent Capacity

2 racks of 7 reagents. Up to 14 reagents total.
Incubation Temperature

2 positions. Room temperature to 40°C
Spectrophotometer
  • 5 filters: 405, 450, 490, 550 and 630 nm wavelengths standard (custom available)
  • Linear Range: 0 to 3.0 OD
Chemiluminescence PMT
  • Detection type: glow
  • Spectral range: 300–500 nm
  • Dark count: 50 counts/s (standard)
  • Measuring time: 100 ms (adjustable 100–1000 ms)
  • Dynamic range: 6 decades (*optional configuration)
Power Supply
  • Voltage: 100–265V
  • Frequency: 50–60Hz
  • Consumption: 12W w/o incubator
  • 120W max
Dimensions
  • W: 66.1 cm (26 in)
  • D: 57.2 cm (22.5 in)
  • H: 55.9 cm (22 in)
  • H (open): 99.1 cm (39 in)
Language

Multi-language support
CE Marked

Yes
